Go from model to drawings — without rebuilding in SAFE
Design, analyze and detail reinforced concrete slabs directly from your Revit model. No manual model recreation, no broken workflows, full control at every step.
Why teams switch to Strucwise
Stop rebuilding models
Exporting to SAFE shouldn’t mean starting from scratch.
- Generate analysis models from your Revit geometry
- No manual slab meshing or redefinition
- Keep design and analysis consistent
Iterate in minutes — not hours
Run → review → adjust → rerun. Fast.
- Re-run models instantly as loads or layouts change
- Test multiple design options early
- Remove bottlenecks in iteration cycles
Stay in control of your engineering
This is not a black box.
- Full access to SAFE models
- Modify assumptions anytime
- Validate deflection, punching shear and behaviour
- Engineering judgment stays with you
Go beyond analysis — complete detailing
From model → drawings, in one workflow.
- Automated reinforcement layouts
- Bar sizing, spacing and quantities
- Drawing-ready outputs
- Minimal manual cleanup

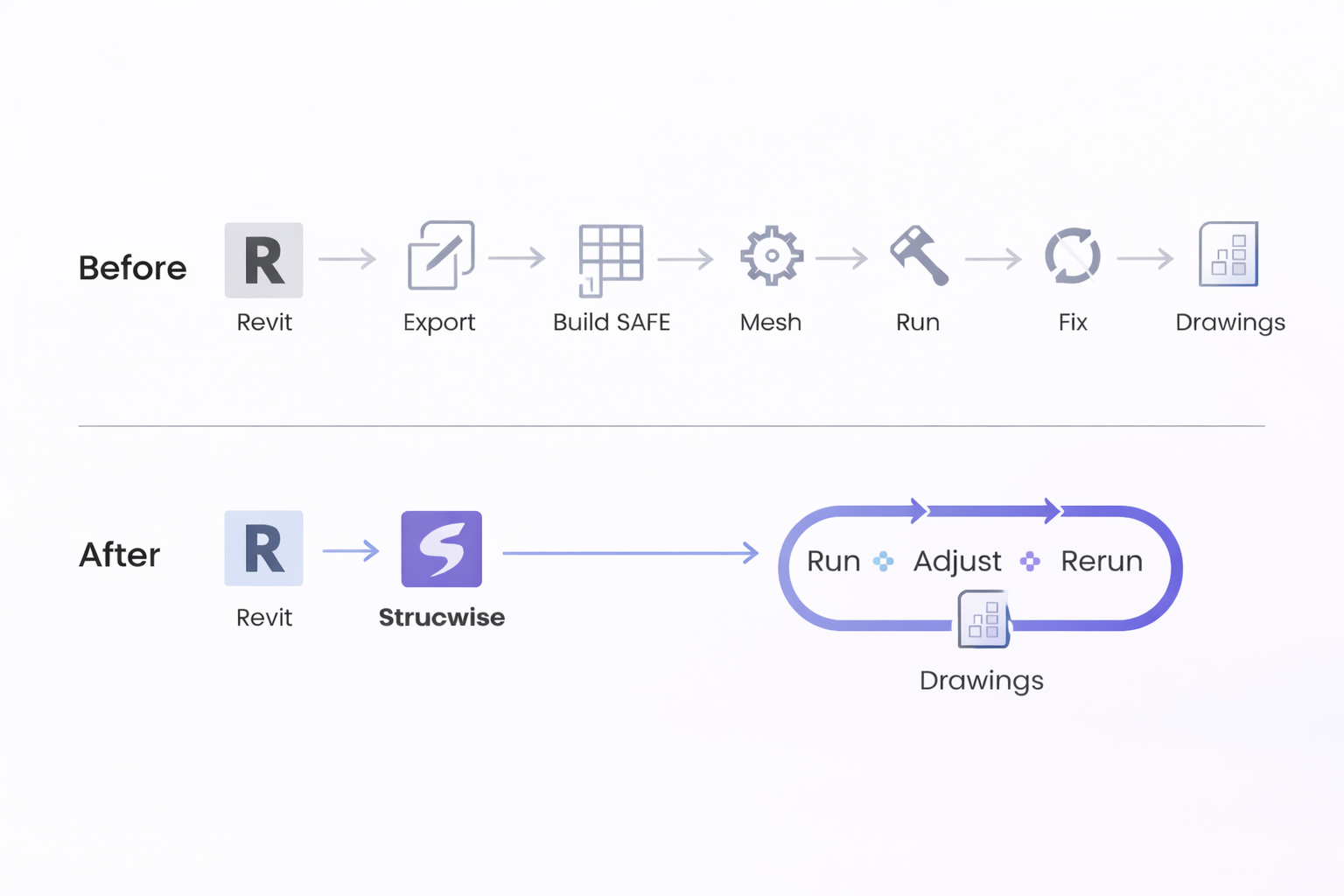

From a broken workflow to one continuous flow
Before
RevitExportBuild SAFEMeshRunFixDrawings
Hours per floor — repeated every revision
With Strucwise
RevitStrucwiseDrawings
Run, review, rerun — in minutes
Minutes per floor — iterate freely
Steps per floor7→3
TurnaroundHours→Minutes
Rebuild model in SAFEYes→No
What Strucwise is built for
Works great for this
- Flat slabs
- Drop panels
- Multi-storey buildings
- Slab + beam systems
- Reinforced-concrete structures
Not built for this (yet)
- Steel structures
- Composite systems
- Post-tension slabs (coming soon)
Typical projects
Works across building types — because the workflow is structural
Residential buildings
Commercial / office
Mixed-use developments
Institutional (hospitals, schools)
Is this the right workflow for you?
Strong fit
- You design concrete slabs regularly
- You use SAFE or similar analysis tools
- You spend real time on modeling and iteration
Not a fit (yet)
- You work mostly on steel structures
- You rely heavily on post-tension
- Slab design isn’t core to your work
What engineers say
After 25 years of hearing promises, this is the first software that truly delivers — completing full slab design and detailing with minimal manual input.
We shifted a large portion of our slab design from manual modeling to automated workflows, freeing up our team to serve clients better.
Start your first model
Run your first slab model in minutes — and see the difference immediately. No upfront commitment, pay only for what you use.
