Design structural slabs from model to drawings

— in minutes, not days

Automatically generate SAFE analysis models, validate results, and produce reinforcement drawings directly from your Revit model.

From input to outputs — fully automated

Input

📥

  • Revit model (architectural or structural)

  • Optional loading plans / assumptions

Processing

⚙️

  • Automated SAFE model generation

  • Slab analysis (deflection, punching, stability)

  • Design strip generation & code checks

Output

📤

  • SAFE model (.fdb) — editable

  • Analysis report (PDF)

  • Punching shear log

  • Detailed design log

  • Revit reinforcement drawings (RVT)

Core Capabilities

    • Generate SAFE models directly from Revit

    • Apply loads and design parameters automatically

    • Run slab analysis at floor level

    • Deflection checks

    • Punching shear detection

    • Code-based design verification

    • Full calculation logs (not black box)

    • Design strips + rebar layout

    • Revit-ready reinforcement drawings

    • Editable outputs (not locked)

A digital badge featuring a large letter 'R' and a 3D illustration of a building or skyscraper, outlined in blue, enclosed within a rounded square border.
A blank white square.

How it works

Go from model to drawings in 5 steps

A symbol indicating a loading or download process, with two downward arrows directing onto a platform or conveyor belt.

1️⃣

Upload your Revit model

Start with your existing architectural or structural model

2️⃣

Add loading plans

Define loads and design assumptions

Icon of a color palette with a checkmark indicating approval, set against a grid background and a color scale on the side.
The image is blank with no visible content.
No image detected or provided.

3️⃣

Run slab analysis

Generate analysis models for each floor and review results

Digital device displaying a PDF document with bar charts, checkmarks, and text, indicating data or report presentation.

4️⃣

Validate results

Check deflection, punching shear, and model stability in SAFE

Blueprint drawing of a rectangular building or room with a grid layout, marked with dimensions; a large letter 'R' in the top left corner.
Empty white space with no visible objects or details.

5️⃣

Generate reinforcement drawings

Export detailing, quantities, and Revit-ready reinforcement

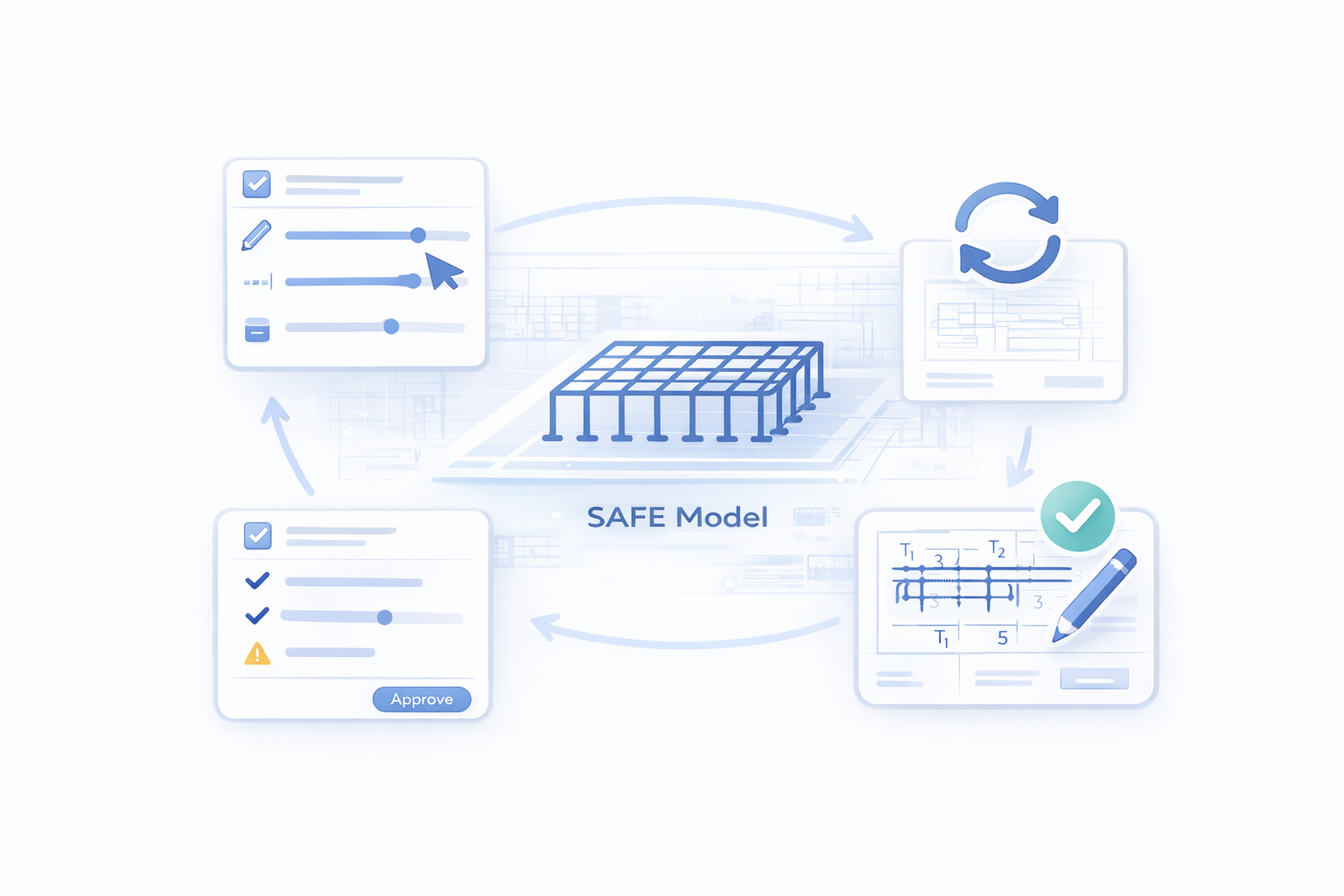

Diagram illustrating the SAFE Model with interconnected charts, checklists, and a 3D structural model in the center.

Built for engineers — not just automation

  • Full access to SAFE model

  • Modify assumptions anytime

  • Re-run analysis in minutes

  • Adjust reinforcement before finalizing

  • Outputs remain fully editable

Adapt to your standards

  • Customize design parameters

  • Apply company templates across projects

  • Control detailing rules and bar selection logic

  • Match your firm’s documentation standards

Icon representing a downloadable software update process with a document displaying a grid, checkmarks, a gear symbol, and a downward arrow.

No need to rebuild slab models from scratch in SAFE

The image is blank or contains no visible content.

Reduce manual modeling

Why Strucwise?

Icon representing medication refill process with a play button, prescription list, and adjustment sliders.

Run → review → adjust → rerun in minutes, not hours

A blank white square

Iterate faster

Illustration of a workspace with a 3D cube, a checklist with checkmarks, and a hand holding a wrench, all in blue tones.

Review and modify the SAFE model and outputs as needed

A close-up of a skateboard deck with a lightning bolt design and colorful grip tape.

Stay in control

Icon of a clipboard with checkmarks, a dollar coin, and a pen, indicating financial planning or budgeting.

Get efficient reinforcement layouts and quantity estimates

The image appears to be empty or contains no visible objects.

Optimize material usage

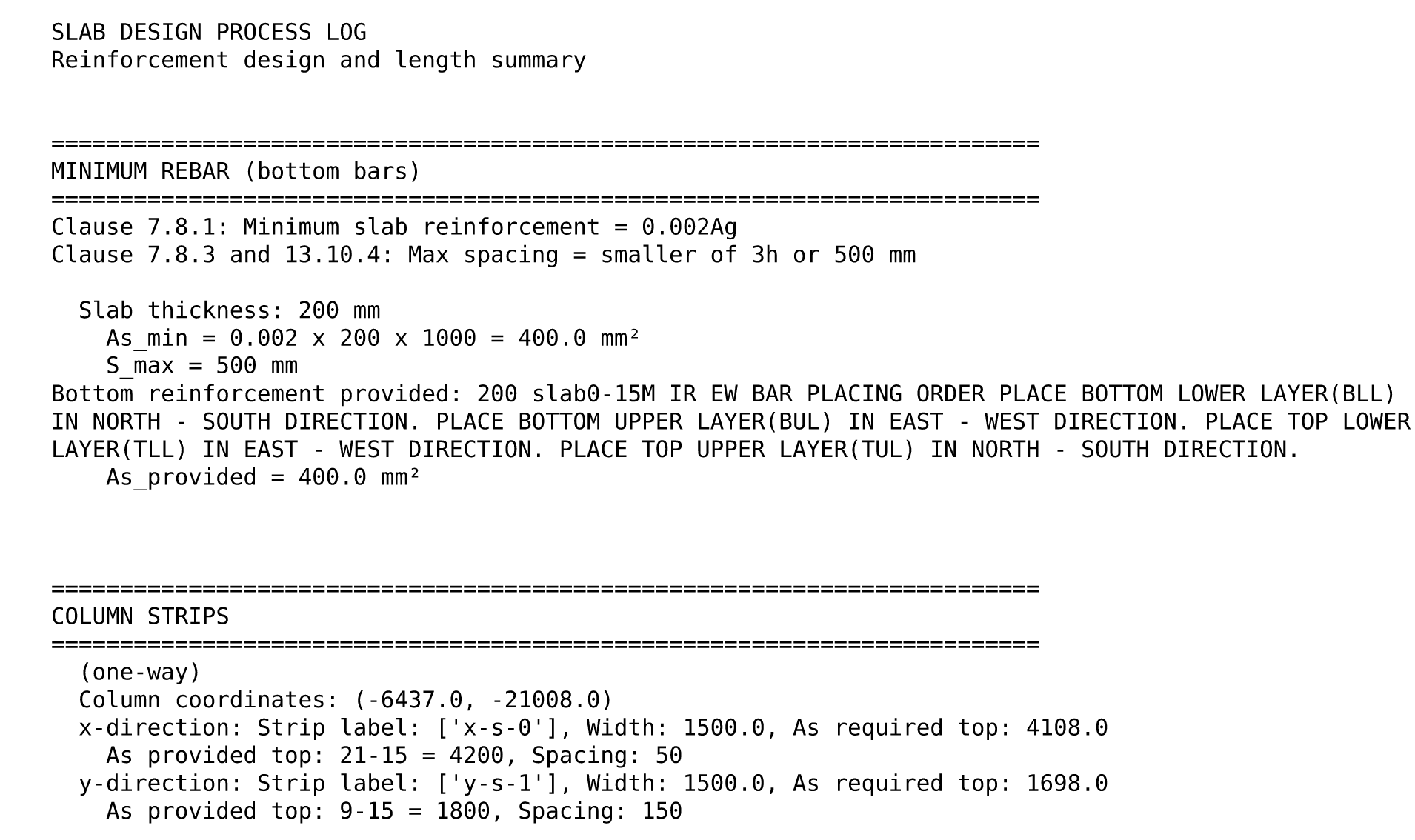

Technical document titled 'Slab Design Process Log' with sections on reinforcement design, length summary, minimum rebar, slab thickness, bottom reinforcement, and column strips, including detailed specifications and measurements.

See what you get

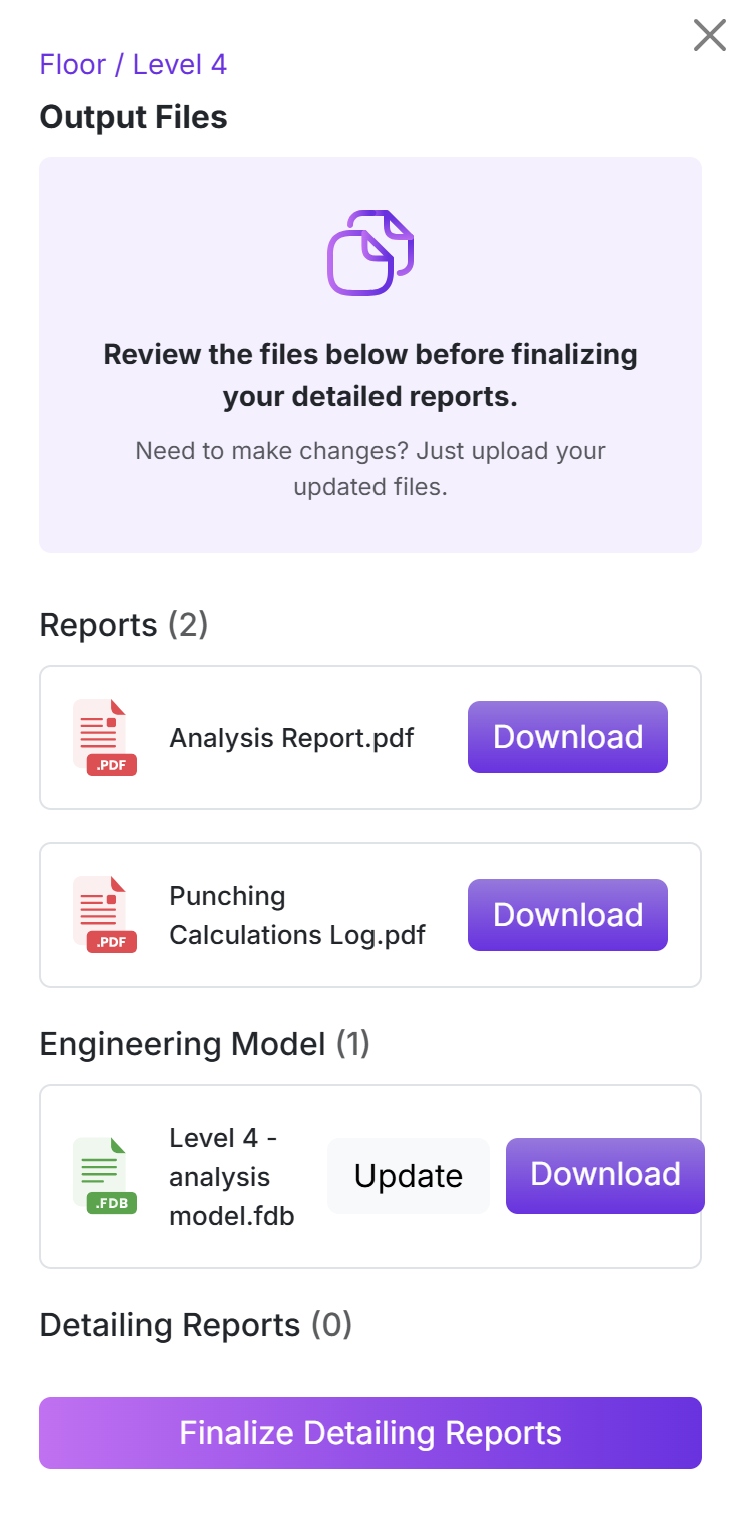

Screenshot of a software interface for managing output files with options to view, download, and update reports and models.

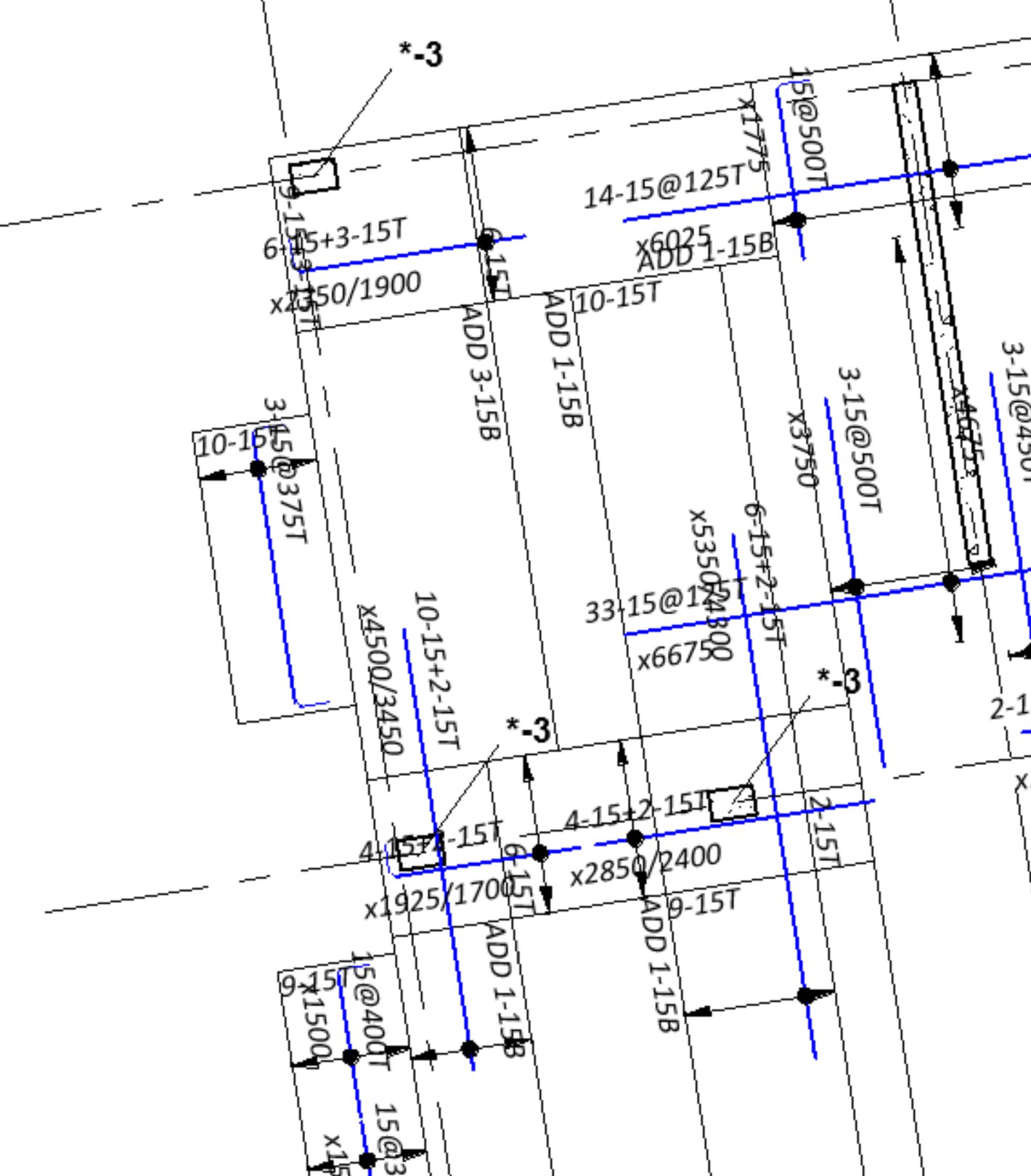

Technical construction plan with measurements, lines, and symbols indicating electrical or plumbing layouts.

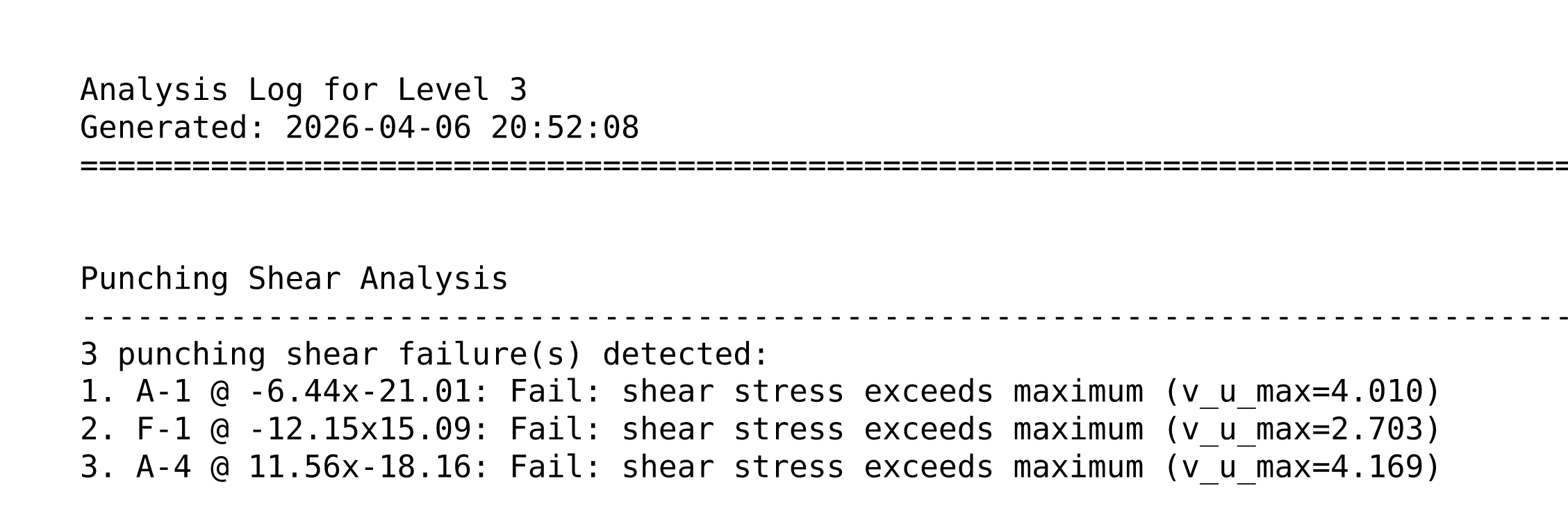

A screenshot of a computer-generated analysis log showing punch shear failures, with timestamps and shear stress failure details.
A colorful thermal or stress analysis pattern mapped on a complex architectural or engineering structure with various rectangular openings.

Start your first slab model in minutes
